“知識大講堂”又和大家見面啦！

繼上期“高低壓配電產品”專題推出以來，大講堂欄目得到了廣大員工和新老客戶的好評。很多同行專家給予了我們技術上的指正和幫助，對于行業前景以及未來發展趨勢也進行了深入的探討和充分的分析，讓編者對于美好的明天滿懷期待、充滿信心！在此請允許我向各位前輩和老師們說上一句感謝，感謝大家對于隆電的關注和支持！我們會一如既往，用嚴謹有致的技術水平、勤學明銳的工作態度、精益求精的生產工藝，為中國防爆電氣事業奉獻自己的一份綿薄之力！

本期內容將繼續圍繞我們的“高低壓配電產品”系列，對我司生產的“PXTF低壓配電箱”來進行分析講解?！癙XTF低壓配電箱”廣泛用于各種樓宇、廣場、車站及工礦企業等場所，作為配電系統的終端設備，適用于民用或在非專業人員可以進入的場合使用。那么它的產品特性是什么，又有什么樣的特點呢？

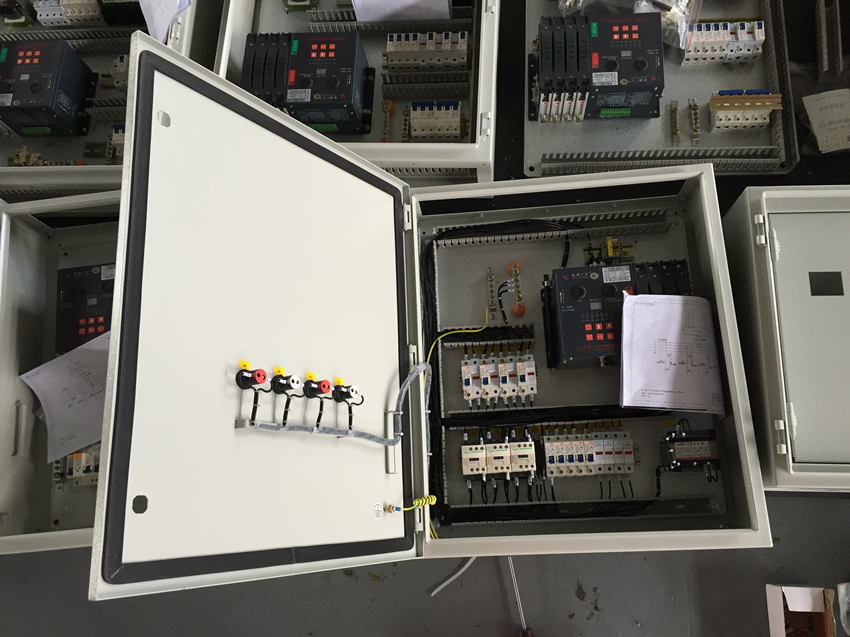

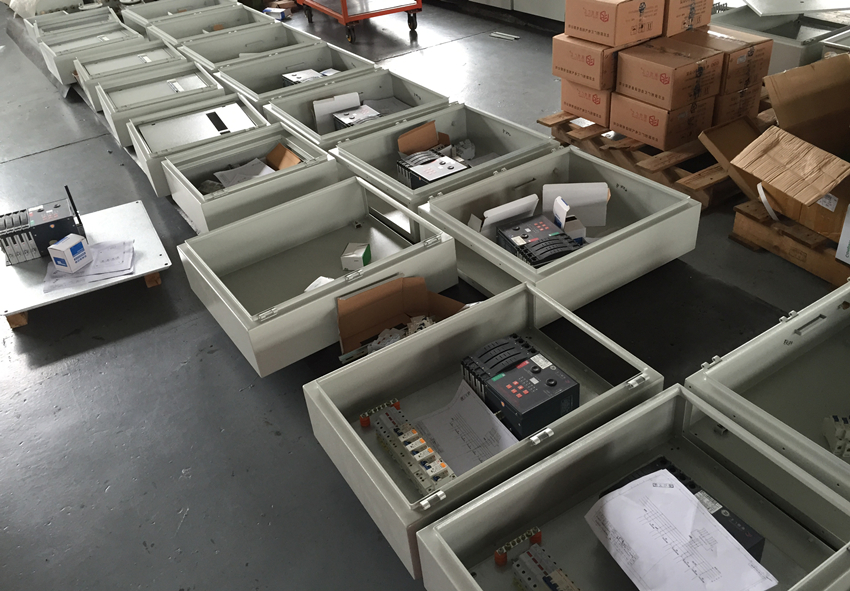

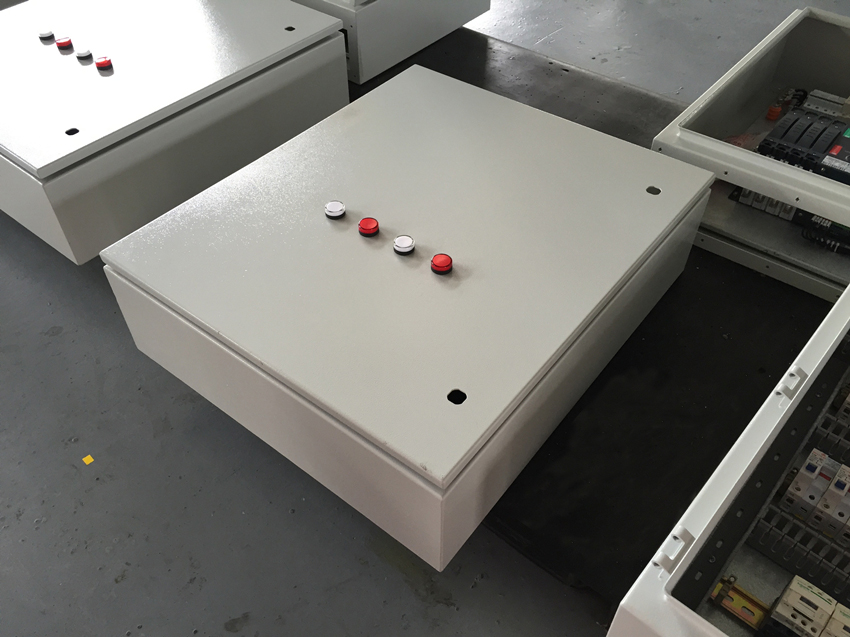

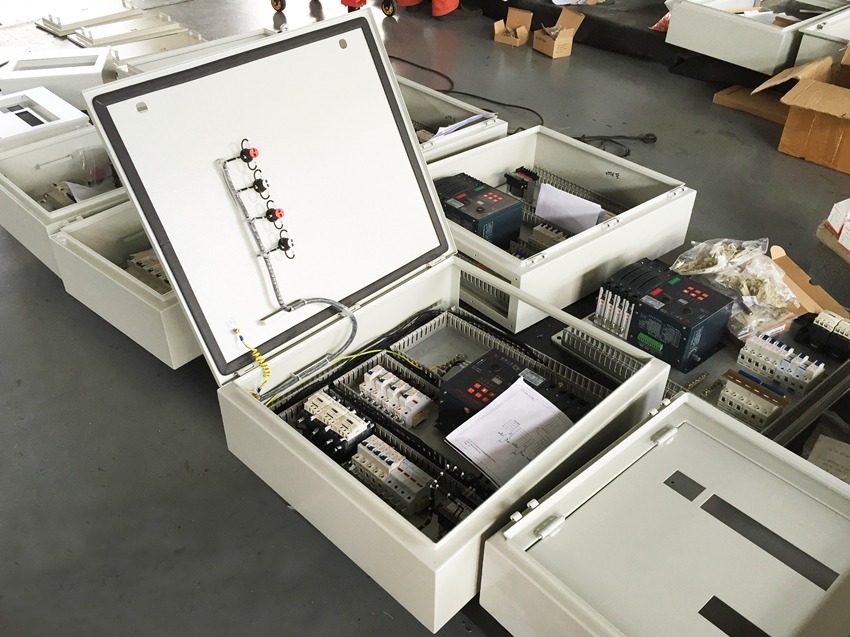

PXTF低壓配電箱·實拍

制造商：天津市隆電電氣工程有限公司

合同編號：15-04-09/LD-W-020

一、產品簡介：

I.Brief introduction :

PXTF低壓配電箱設計依據國家標準GB7251.3-2006 《低壓成套開關設備和控制設備》 及歐洲標準EN61493-1、2。廣泛用于各種樓宇、廣場、車站及工礦企業等場所，作為配電系統的終端設備。這類設備適合用于民用或適合在非專業人員可以進入的場合使用。配電箱包括控制設備及信號設備。

PXTF low voltage power distribution box is designed according to the national standard GB7251.3-2006 “l(fā)ow voltage switchgear and control equipment” and the European standard EN61493-1, 2. It is widely used in all kinds of buildings, squares, stations and industrial and mining enterprises and other places as the power distribution system terminal equipment. This type of equipment is suitable for civilian use or the occasions where non professional personnel have access to. This distribution box includes control equipment and signal equipment.

二、主要性能與特點：

II.Main performance and features :

1. 本產品用于交流、額定頻率50Hz、額定電壓380/220V，額定電流不超過250A的終端配電、控制系統。

2. 箱體外殼可以采用碳鋼噴涂、不銹鋼制作，防護等級IP30。

3. 配電、控制多樣化：可以根據用戶需要配置不同廠家的塑殼斷路器、隔離開關、微型斷路器、接觸器、熱繼電器、插座、PLC、熔斷器等元器件。

4. 安裝方式靈活：分為落地式、明裝掛墻式、暗裝掛墻式。外型美觀。

1. This product is used for terminal power distribution and control system of AC, rated frequency 50Hz, rated voltage 380/220V and rated current not exceeding 250A.

2. The box shell can be made of carbon steel spraying, stainless steel production, protection grade IP30.

3. Distribution and control diversification: it can according to user needs to configure different manufacturers of molded case circuit breaker, isolating switch, miniature circuit breaker, contactor, thermal relay, socket, PLC, fuse components and etc..

4. The installation method is flexible: it is divided into landing type, hanging wall type and concealed wall type. All with nice appearances.

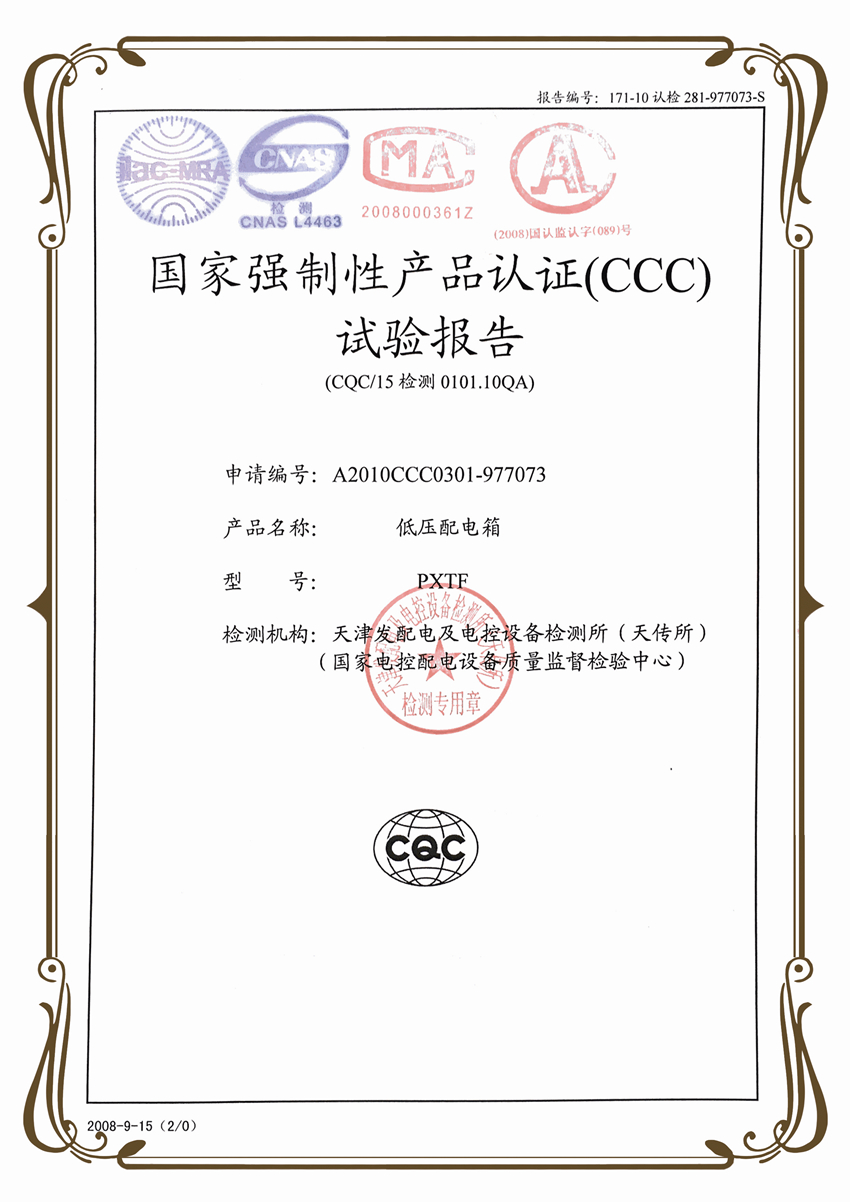

國家強制性產品認證試驗報告
